Description
GO452 - Universal Glow Plug Tip Extraction Set - Deep Design
Designed for deep-seated glow plug tip removal where standard tools can’t reach.

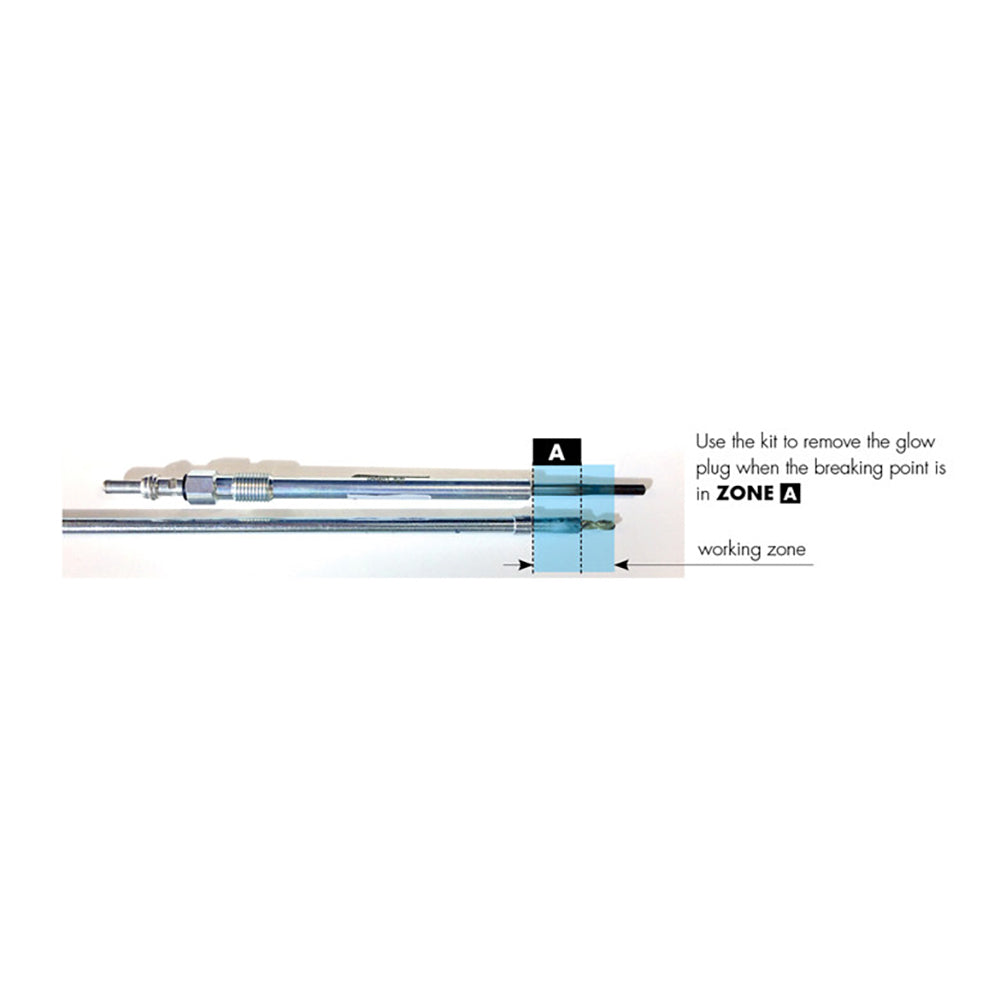

The GO452 Deep Design Set is engineered for the safe removal of broken glow plug tips that remain lodged deep within the cylinder head. Its extended-reach design makes it ideal for situations where the heating element has snapped below the seat, allowing for controlled and effective extraction.
Compatible with modern diesel engines, the kit covers M8, M9 and M10 glow plug sizes, including M10 x 1.25.
Key Features
- Deep design for extended reach in difficult extractions
- Suitable for M8 x 1, M9 x 1, M10 x 1 and M10 x 1.25 glow plugs
- Designed for use on modern diesel engines
- Precision-guided drilling using existing glow plug threads
- Helps minimise risk of cylinder head damage
- Reinforced drilling tips for use with ceramic glow plugs
- Complete kit for professional workshop use
How It Works

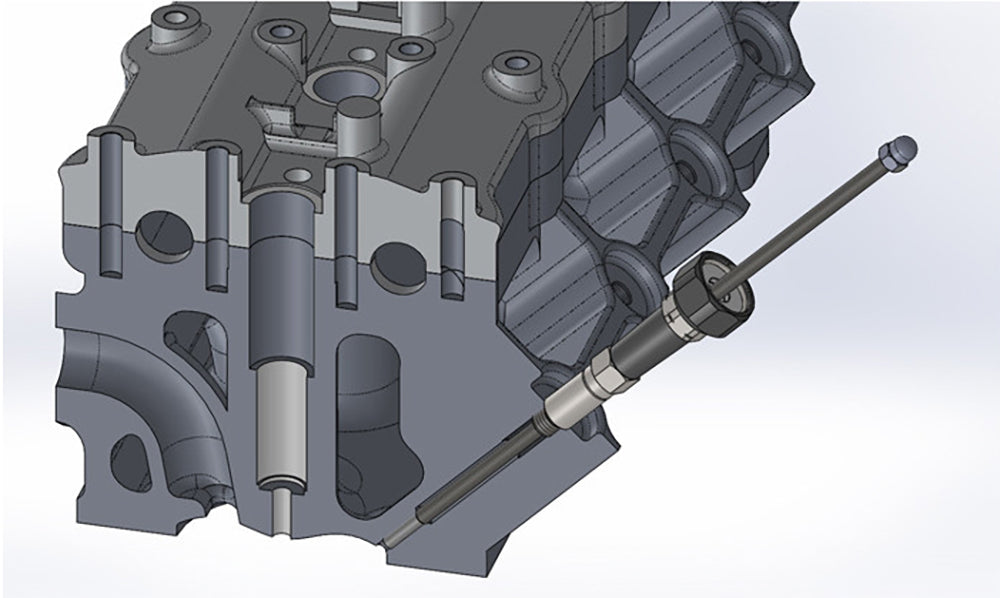

The kit enables technicians to create a secure thread inside the broken glow plug tip. An extraction rod and striking hammer are then used to remove the tip in a controlled manner. The drill is guided through the original glow plug thread, ensuring accuracy and protecting the cylinder head during the process
Applications
Suitable for a wide range of diesel engines, including:
-
Citroen/Peugeot: 1.4, 1.6L HDI
-
Ford: 1.4, 1.6L TDCI
-
Mazda: 1.4 CD
-
Suzuki: 1.4L DDIS
-
Toyota: 1.4 HDI
-
Volvo: 1.6D, etc.

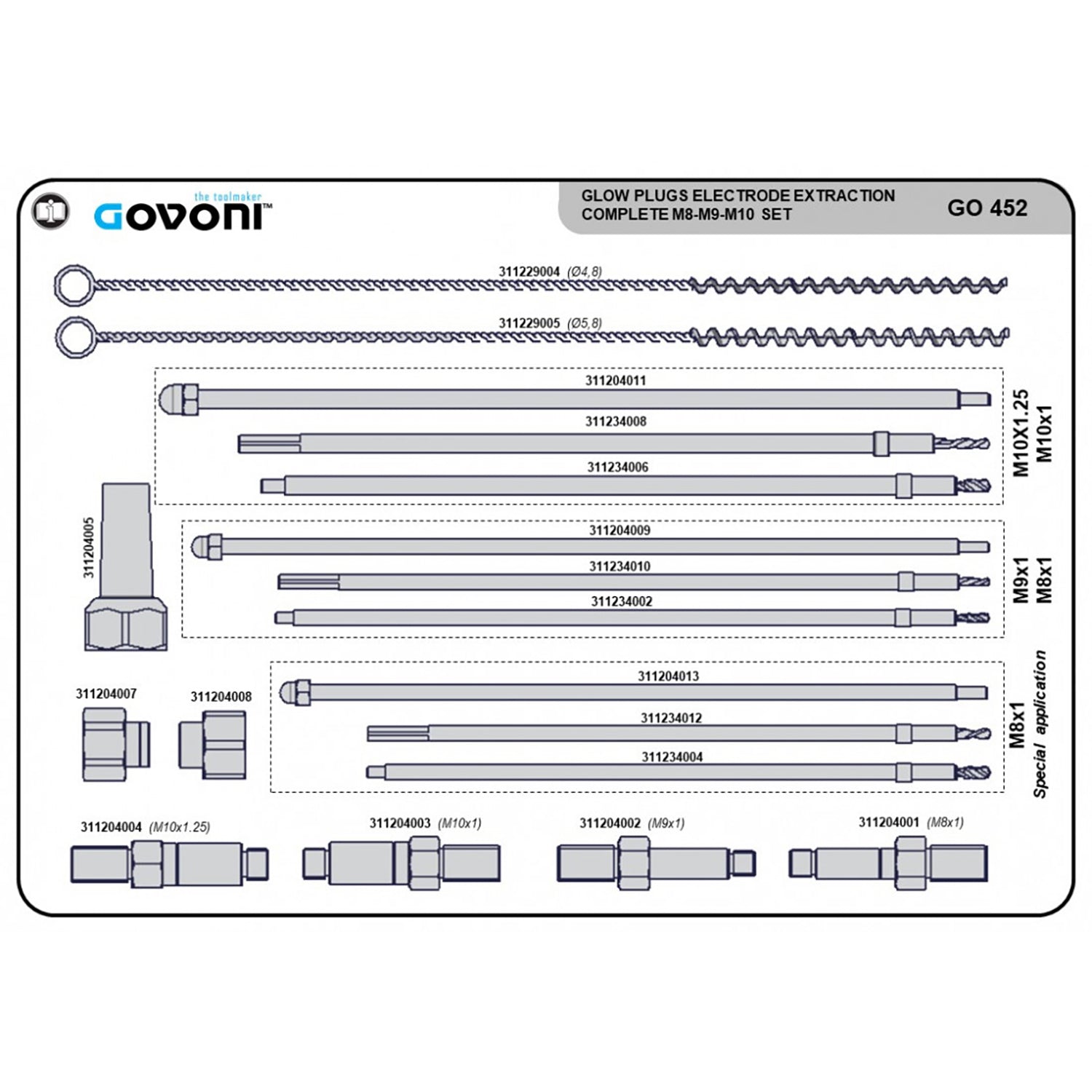

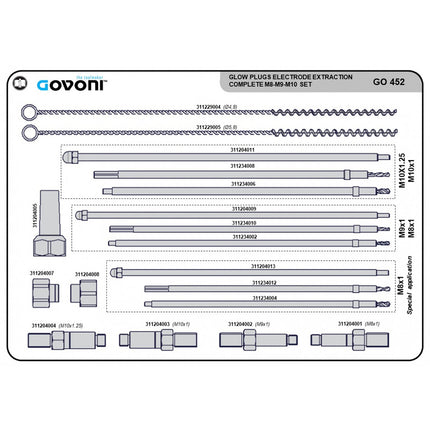

What's Included
- Core hole drill extensions (multiple sizes for M8–M10 applications)
- Thread tap extensions
- Extra-long extraction rods with cap nuts
- Striking hammer
- Tap guides for precise alignment across all supported thread sizes
